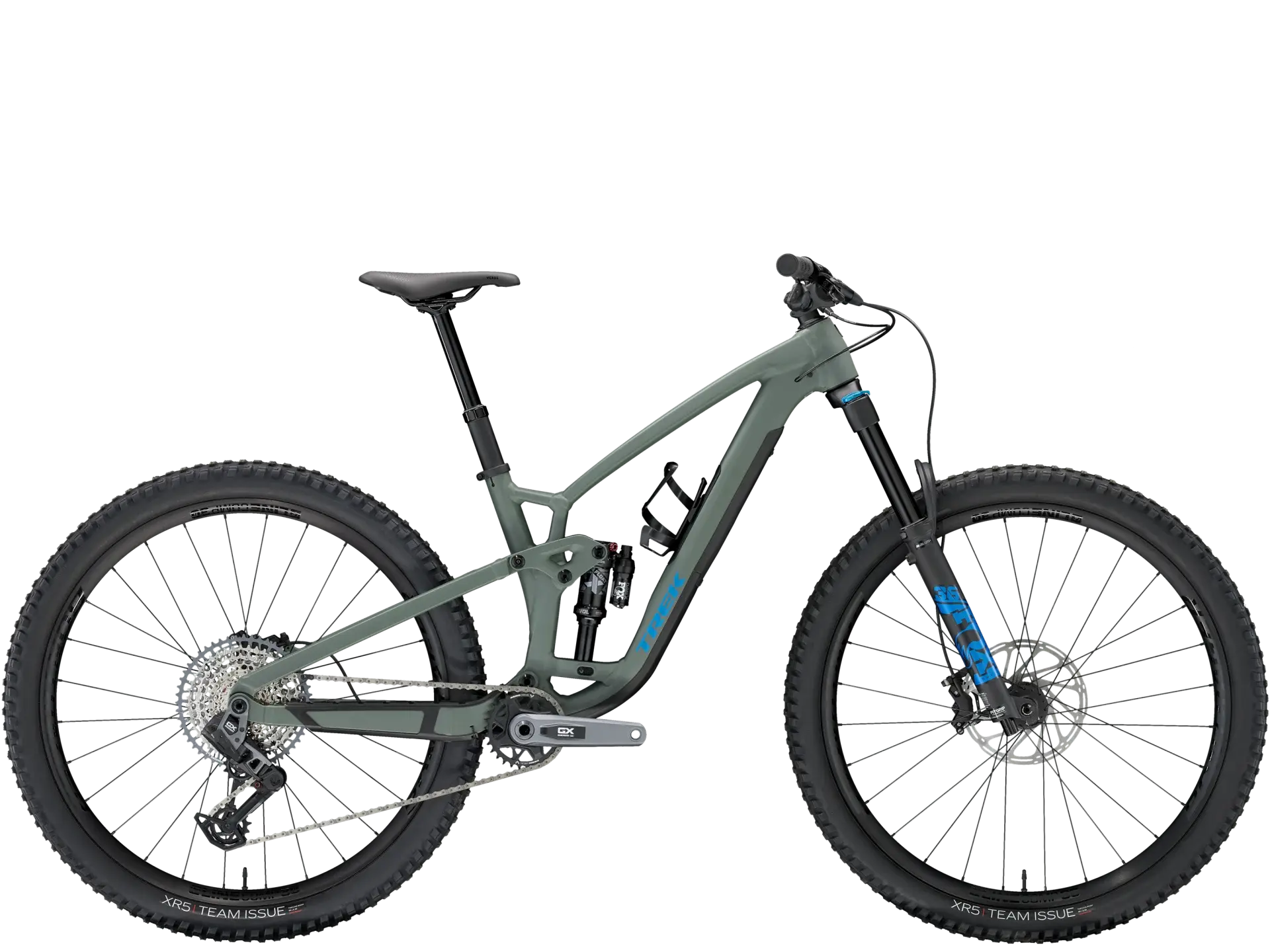

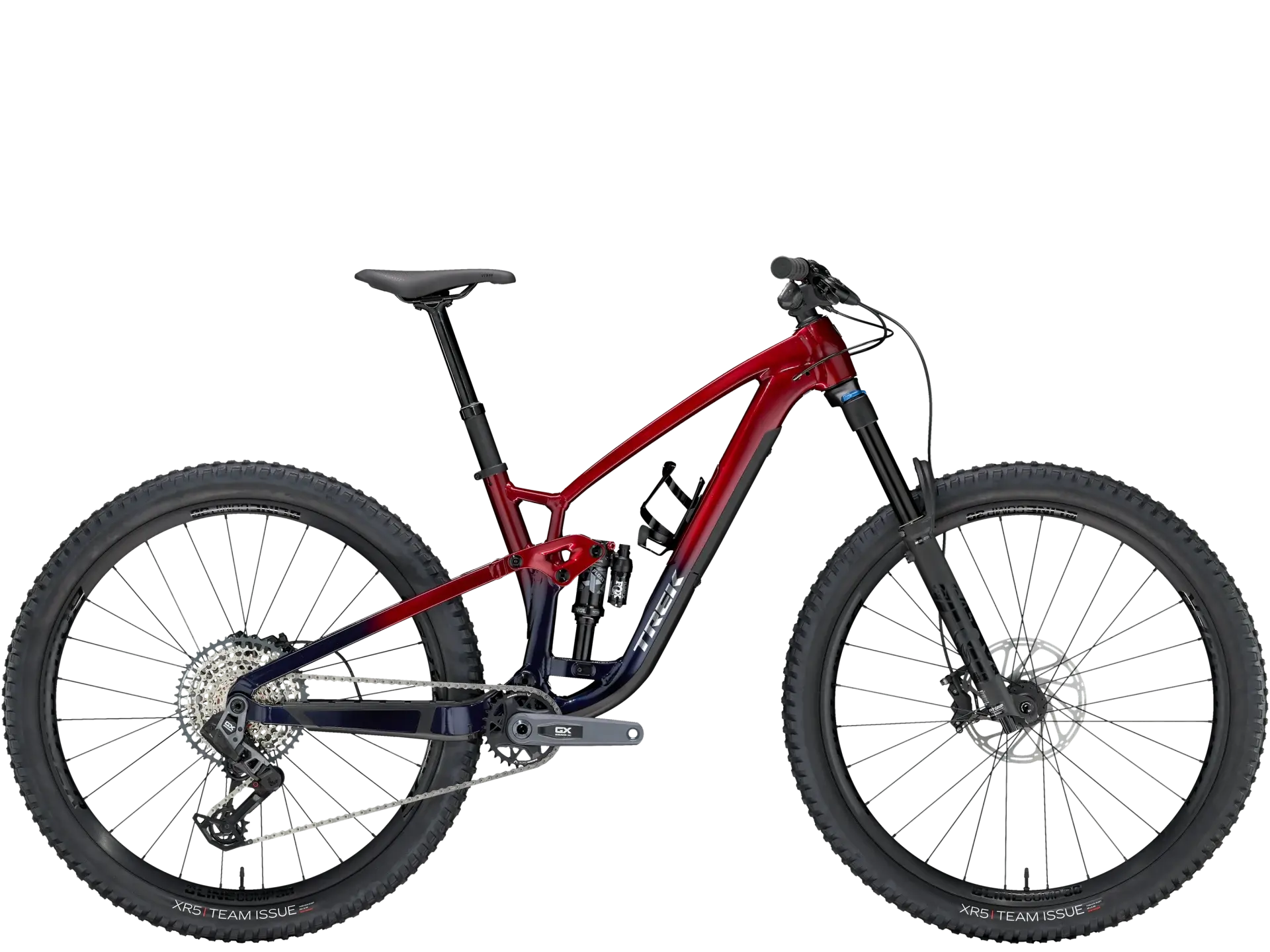

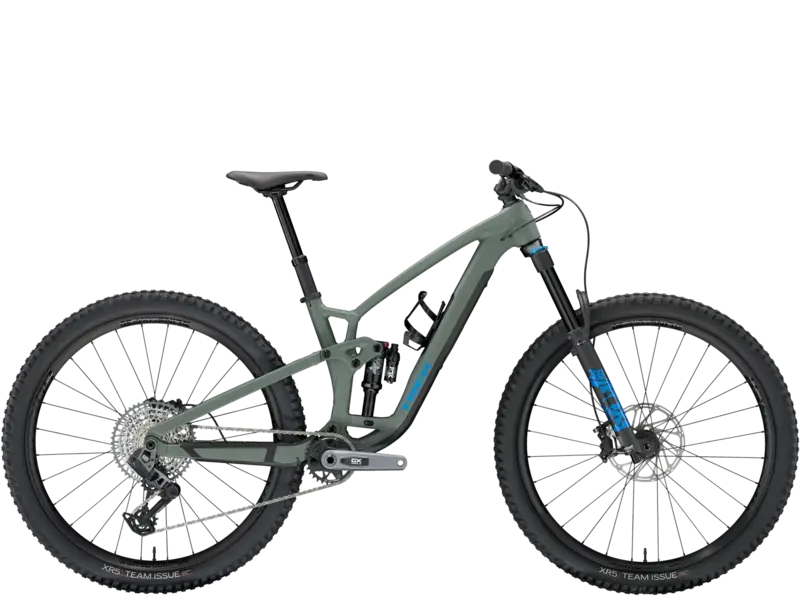

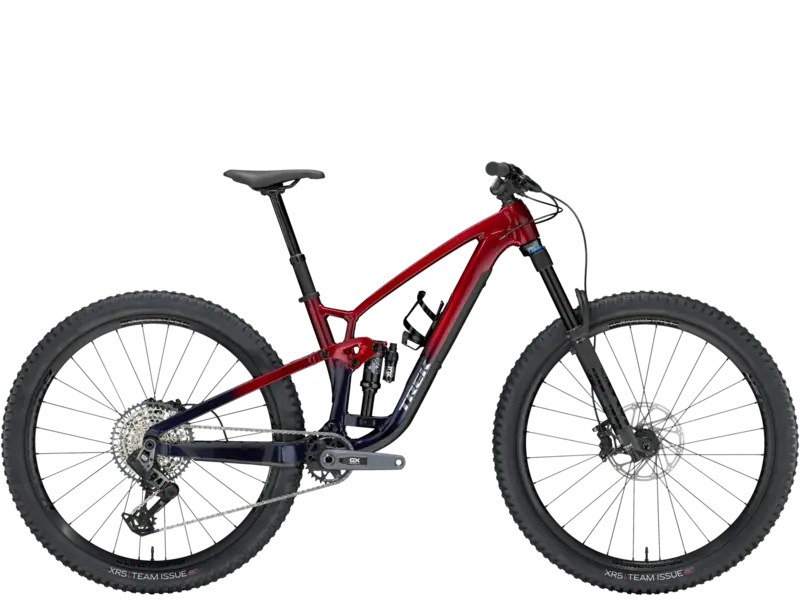

Fuel EX 8 GX AXS is an evolved trail bike, dialed for riders who chase down rowdy descents, and want a bike that's happy to pedal back to the top and do it again. The lightweight alloy frame pairs with a upgraded electronic wireless 12-speed SRAM GX Eagle
| Frame | Alpha Platinum Aluminum, internal storage, angle-adjust headset, Mino Link adjustable geometry, adjustable leverage rate, guided internal routing, magnesium rocker link, 34.9mm seat tube, ISCG 05, 55mm chainline, BSA 73, downtube guard, shuttle guard, ABP, UDH, Boost148, 140mm travel |
|---|---|
| *Fork | Size: XS , S Fox Rhythm 36, Float EVOL air spring, GRIP damper, tapered steerer, 44mm offset, Boost110, 15mm Kabolt axle, 140mm travel |
| Size: S , M , ML , L , XL , XXL Fox Rhythm 36, Float EVOL air spring, GRIP damper, tapered steerer, 44mm offset, Boost110, 15mm Kabolt axle, 150mm travel |
|
| Shock | Fox Performance Float X, 2-position damper, 185mm x 55mm |
| Max compatible fork travel | 160mm, XS/S: 150mm |
| *Wheel front | Size: XS , S Bontrager Line Comp 30, Tubeless Ready, 6-bolt, Boost110, 15mm thru axle, 27.5'' |
|---|---|
| Size: S , M , ML , L , XL , XXL Bontrager Line Comp 30, Tubeless Ready, 6-bolt, Boost110, 15mm thru axle, 29'' |
|
| *Wheel rear | Size: XS , S Bontrager Line Comp 30, Tubeless Ready, Rapid Drive 108, 6-bolt, Boost148, 12mm thru axle, 27.5'' |
| Size: S , M , ML , L , XL , XXL Bontrager Line Comp 30, Tubeless Ready, Rapid Drive 108, 6-bolt, Boost148, 12mm thru axle, 29'' |
|
| Skewer rear | Bontrager Switch thru axle, removable lever |
| *Tire | Size: XS , S Bontrager XR5 Team Issue, Tubeless Ready, Inner Strength casing, aramid bead, 60 tpi, 27.5x2.50" |
| Size: S , M , ML , L , XL , XXL Bontrager XR5 Team Issue, Tubeless Ready, Inner Strength casing, aramid bead, 60 tpi, 29x2.50'' |
|
| Tire part | Bontrager TLR sealant, 180 ml/6 oz |
| Rim strip | Bontrager TLR |
| Max tire size | Frame: 29x2.50" (XS & S: 27.5x2.50"), Fork: See manufacturer |
| Battery | SRAM eTap battery pack (with charger) |
|---|
| Shifter | SRAM AXS POD |
|---|---|
| Rear derailleur | SRAM GX Eagle AXS, T-Type |
| Crank | SRAM GX Eagle, T-Type, DUB, 30T, 55mm chainline, 170mm length |
| Bottom bracket | SRAM DUB MTB Wide, 73mm, BSA threaded |
| Cassette | SRAM Eagle XS-1275, T-Type,10-52, 12 speed |
| Chain | SRAM GX Eagle, T-Type, 12 speed |
| Max chainring size | 1x: 34T round, 32T oval, min 28T |
| Saddle | Bontrager Verse P3, chromoly rails |
|---|---|
| *Seatpost | Size: XS , S Bontrager Line Dropper, 100mm travel, MaxFlow, internal routing, 34.9mm, 310mm length |
| Size: M , ML Bontrager Line Dropper, 150mm travel, MaxFlow, internal routing, 34.9mm, 410mm length |
|
| Size: L , XL , XXL Bontrager Line Dropper, 170mm travel, MaxFlow, internal routing, 34.9mm, 4500mm length |
|
| *Handlebar | Size: XS , S Bontrager Line, alloy, 35 mm, 27.5 mm rise, 750 mm width |
| Size: M , ML , L , XL , XXL Bontrager Line, alloy, 35mm, 27.5mm rise, 780mm width |
|
| Grips | Bontrager XR Trail Elite, nylon lock-on |
| *Stem | Size: XS , S Bontrager Elite, 35mm, 0 degree, 35mm length |
| Size: M , ML , L , XL , XXL Bontrager Elite, 35mm, 0 degree, 45mm length |
|
| Headset | Integrated cartridge bearing, 1-1/8" top, 1.5" bottom, angle adjust cup compatible |
| Brake | SRAM DB 8 4-piston hydraulic disc |
| *Brake rotor | Size: XS , S , M , ML , L , XL , XXL SRAM CenterLine, 6-bolt, round edge, 180mm |
| Size: XS , S , M , ML , L , XL , XXL SRAM CenterLine, 6-bolt, round edge, 200mm |
|
| Rotor size | Max brake rotor sizes - Frame: 203mm, Fork: see fork manufacturer |
| Weight | M - 15.88 kg / 35.01 lbs (with TLR sealant, no tubes) |
|---|---|
| Weight limit | This bike has a maximum total weight limit (combined weight of bicycle, rider, and cargo) of 300 pounds (136 kg). |
We reserve the right to make changes to the product information contained on this site at any time without notice, including with respect to equipment, specifications, models, colors, materials, and pricing. Due to supply chain issues, compatible parts may be substituted at any time without notice.
Bike and frame weights are based off pre-production painted frames at time of publication. Weights may vary in final production.
